Automatic Multi-Stage Switching
Configurable in 6 to 16 automatic steps with selectable switching delay times, avoiding unnecessary hunting under fluctuating loads.
Power Quality & Efficiency
Power Factor Improvement (PFI) Plants
Centralized Automatic Power Factor Correction (APFC) cubicles designed to eliminate utility low-power-factor surcharges, stabilize feeder voltage, and reduce thermal load on transformers.
Made to project specification
Verified Operating Ratings
- system Voltage
- 415 V (3 Phase, 4 Wire)
- frequency
- 50 Hz
- target Power Factor
- 0.98 to 0.99 Lagging
- switching Steps
- 6, 8, 12, or 16 Steps (Rotational Cyclic)
- inrush Current Capacity
- Up to 100 × Rated Current (100 IR)
- capacitor Technology
- Self-healing metallized polypropylene with overpressure disconnector
Engineering & Manufacturing Architecture
Dynamic Real-Time Monitoring
Front-panel LCD displays active power, reactive power, line voltage, active current, capacitor current, power factor, and harmonic distortion (THD-V / THD-I).
Modular Extensible Design

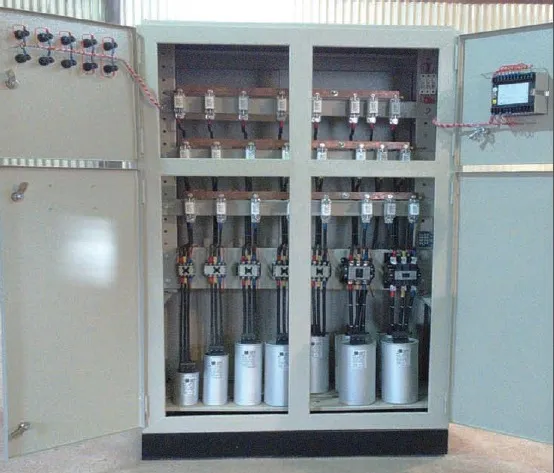

Built within standard cubicles allowing plug-and-play capacity expansion as facility manufacturing loads increase.
Comprehensive Safety Interlocks
Includes discharge resistor networks reducing terminal voltage to <50V within 60 seconds of disconnection, plus door safety interlocks.
Core System Components
Microprocessor-Based PFC Controller
Continuously samples voltage and current vectors via CTs to calculate real-time reactive demand. Intelligently rotates capacitor stages to equalize operating hours and prevent localized wear.

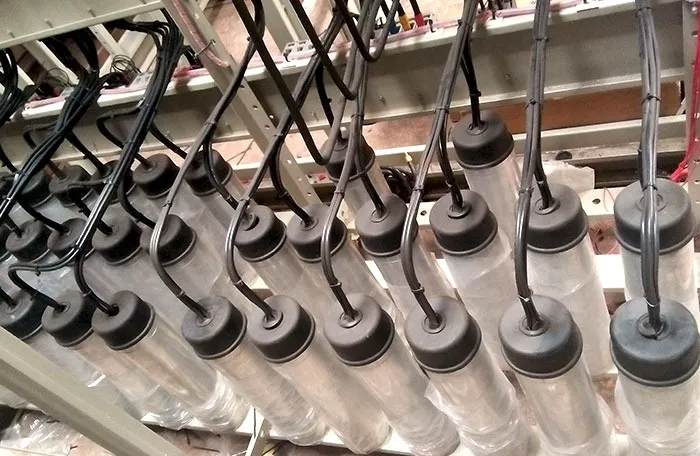

Heavy-Duty Power Capacitors
Premium low-loss dry-type capacitors capable of withstanding inrush currents up to 100 times nominal current (100 IR), featuring self-healing dielectric and internal overpressure safety disconnectors.
Specialized Capacitor Contactors
Equipped with pre-insertion damping resistors to suppress destructive inrush transients during energization, dramatically extending capacitor contact life.
Detuned Harmonic Filter Reactors (Optional)
Iron-core series reactors (7%, 14%) preventing electrical resonance and shielding capacitors from high harmonic distortion created by VFDs and nonlinear industrial loads.
HRC Fuse Protection & Isolation
Fitted with high-breaking-capacity (HRC) fuses rated at 1.6 to 1.8 times nominal capacitor current for rapid isolation of individual stages under short-circuit conditions.
Forced Ventilation & Thermal Interlocks
Thermostatically controlled louvers and exhaust fans ensuring operating ambient temperatures stay within optimal parameters.
Engineering Specification Matrix
Power Factor Improvement (PFI) Plants Specifications
Scroll horizontally →
| System Attribute | Engineering Standard / Value |
|---|---|
| Rated Operating Voltage | 415 V AC (Line-to-Line) ±10% |
| Rated Frequency | 50 Hz |
| Power Factor Adjustment Range | 0.80 Inductive to 0.98–1.00 Target |
| Controller Architecture | Microprocessor Digital True RMS Sensing |
| Capacitor Dielectric | Metallized Polypropylene Film (Self-Healing) |
| Capacitor Inrush Withstand | 100 × In (Rated Current) |
| Discharge Resistors | Integrated (Reduces residual voltage <50V in 60s) |
| Switching Elements | Capacitor-Duty Contactors with Damping Resistors / Thyristor Switches |
| Harmonic Filtering | 5.67%, 7%, or 14% Detuned Reactors Available |
| Overcurrent Protection | HRC Fuses (1.6 – 1.8 × In) |
| Ventilation System | Thermostatically Controlled Forced Air Cooling |
| Enclosure Finish | 7-Tank Hot Phosphate Electrostatic Powder Coated Sheet Steel |
* Custom PFI plants are sized based on comprehensive facility load audits and harmonic spectrum evaluations.
