Authentic ABB VD4 Breaker Core
We standardize on genuine ABB VD4 vacuum circuit breakers offering long maintenance-free operational cycles and exceptional breaking reliability.
Medium Voltage Distribution

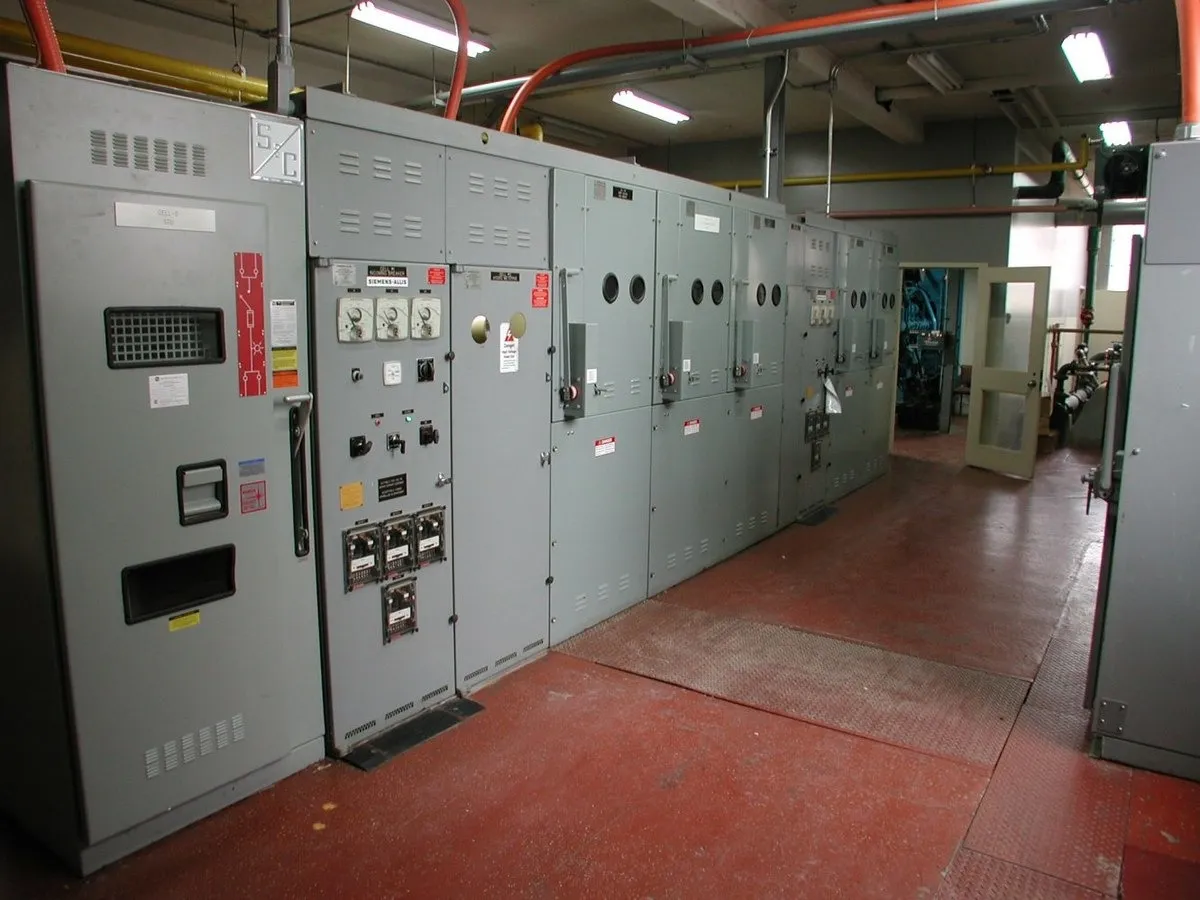

HT Switchgear Panels (11 kV)
11 kV metal-clad modular switchgear cubicles featuring authentic ABB VD4 vacuum circuit breakers, high-capacity Load Break Switches (LBS), and advanced safety interlocks.
Made to project specification
Verified Operating Ratings
- rated Voltage
- 12 kV
- nominal System Voltage
- 11 kV
- rated Frequency
- 50 Hz
- power Frequency Withstand
- 28 / 36 kV rms (1 min)
- impulse Withstand Voltage
- 75 / 95 kV peak (1.2/50 µs BIL)
- rated Current Options
- 630 A / 1250 A / 2000 A / 3000 A
- short Circuit Breaking Current
- 25 kA / 31.5 kA / 40 kA
Engineering & Manufacturing Architecture
Fully Interlocked Truck Mechanism

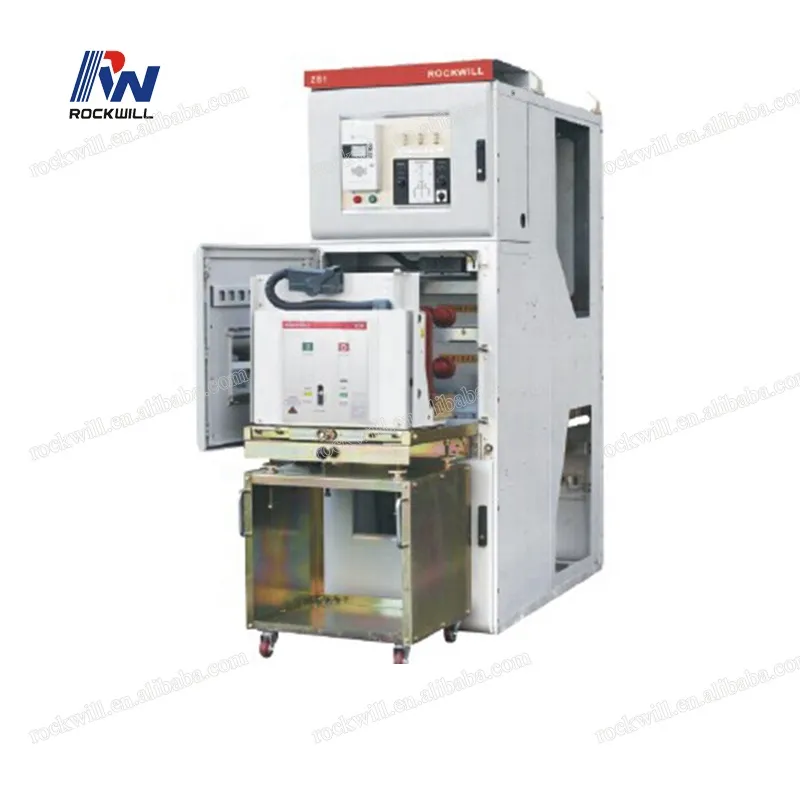

Horizontally withdrawable truck features mechanical and electrical safety interlocks preventing racked movement while the breaker is closed, with secure test-position door locking.
Heat-Shrink High-Dielectric Sleeving
Main busbars are clad in high-dielectric heat-shrinkable insulation sleeves, supported by fire-retardant barriers for optimum phase-to-phase and phase-to-ground clearance.
Dust & Vermin-Proof Enclosure
Manufactured from heavy gauge electro-galvanized sheet steel with IP4X/IP54 degree of protection, treated via the 7-tank hot phosphate powder coating process.
Switchgear Panel Variants
Vacuum Circuit Breaker (VCB) Panel
Built with ABB VD4 fixed or horizontally withdrawable vacuum circuit breakers. Employs ceramic vacuum interrupters for superior arc-quenching, mechanical stability, and motor-charged spring closing mechanisms.
Load Break Switch (LBS) Panel
Economical 11kV protective cubicle rated at 630A with integrated HRC fuses, 3 CTs, 3 PTs, and analog/digital metering. Dimensions: 900 × 1000 × 1800 mm, weight approx. 450 kg.
Metering & Protection Cubicle
Houses utility-compliant tariff metering CTs/PTs, multifunctional digital protection relays, and auxiliary DC tripping supplies.
Engineering Specification Matrix
HT Switchgear Panels (11 kV) Specifications
Scroll horizontally →
| Technical Specification | VCB Panel Rating | LBS Panel Rating |
|---|---|---|
| Rated System Voltage | 12 kV (11 kV Nominal) | 12 kV (11 kV Nominal) |
| Rated Frequency | 50 Hz | 50 Hz |
| Rated Normal Current | 630 / 1250 / 2000 / 3000 A | 630 A |
| Power Frequency Withstand (1 min) | 28 / 36 kV rms | 28 / 36 kV rms |
| Lightning Impulse Withstand (BIL) | 75 / 95 kV peak | 75 / 95 kV peak |
| Short-Time Withstand Current (3 sec) | 25 / 31.5 / 40 kA | 25 kA |
| Short-Circuit Making Current (Peak) | 63 / 80 / 100 kA | 63 kA |
| Operating Duty Sequence | O - 0.3s - CO - 15s - CO | O - 3 min - CO - 3 min - CO |
| Operating Opening Time | < 50 ms | < 70 ms |
| Enclosure Dimensions (W × D × H) | 900 × 1250 × 2200 mm | 900 × 1000 × 1800 mm |
| Total Weight (Approx.) | 750 – 950 kg | 450 kg |
* Tested in accordance with IEC 62271-100, IEC 62271-200, BS 5311, and BSTI regulatory standards.
